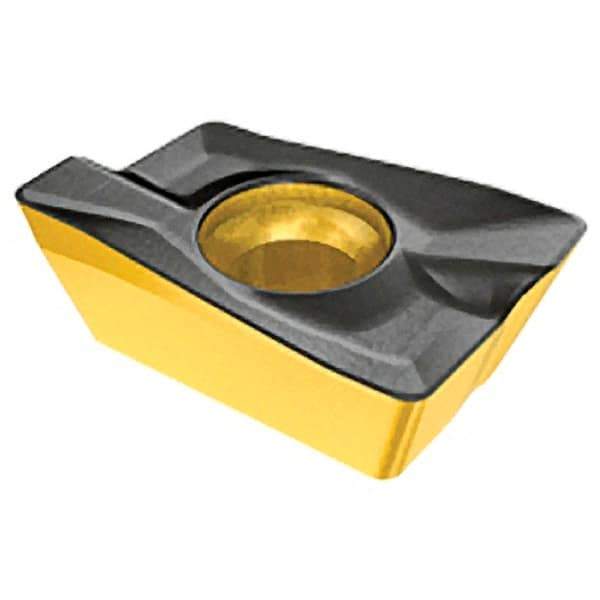

Iscar - HM90 ADCT150516 T Grade IC380 Carbide Milling Insert - TiCN/TiN Finish, 0.2303" Thick, 1.6mm Corner Radius
Item #: 53217667
Brand: Iscar
Model #: 5680264
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HM90 ADCT |
| Insert Size | 150516 |
| Material | Carbide |
| Manufacturer's Grade | IC380 |
| Coating | TiCN/TiN |
| Width (Decimal Inch) | 0.3800 |
| Length (Decimal Inch) | 0.6370 |
| Thickness (Decimal Inch) | 0.2303 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Relief Angle | 15.000 |
| Rake Angle | 18 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | T |
| Maximum Depth of Cut (mm) | 14.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.5710 |
| ISO Number | HM90 ADCT 150516R-T |
