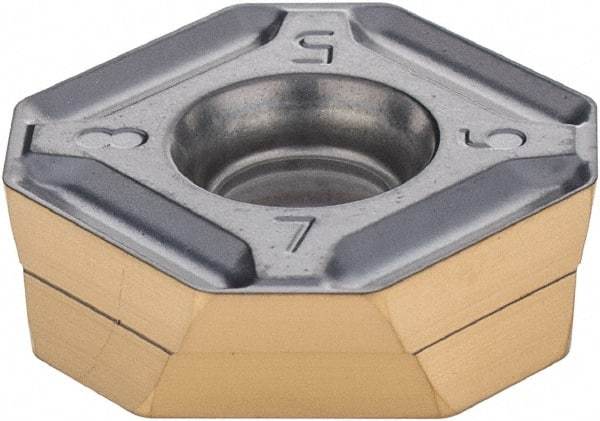

Iscar - IQ845 SYHU0704 MM Grade IC830 Carbide Milling Insert - TiAlN/TiN Finish, 0.165" Thick, 0.543" Inscribed Circle, 0.79mm Corner Radius
Item #: 53202297
Brand: Iscar
Model #: 5607526
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | IQ845 SYHU |
| Insert Size | 0704 |
| Material | Carbide |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/TiN |
| Inscribed Circle (Decimal Inch) | 0.5430 |
| Thickness (Decimal Inch) | 0.1650 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.79 |
| Coating Process | PVD |
| Shape | Square |
| Chipbreaker | MM |
| Maximum Depth of Cut (mm) | 4.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.1810 |
| ISO Number | IQ845 SYHU 0704ADN-MM |
