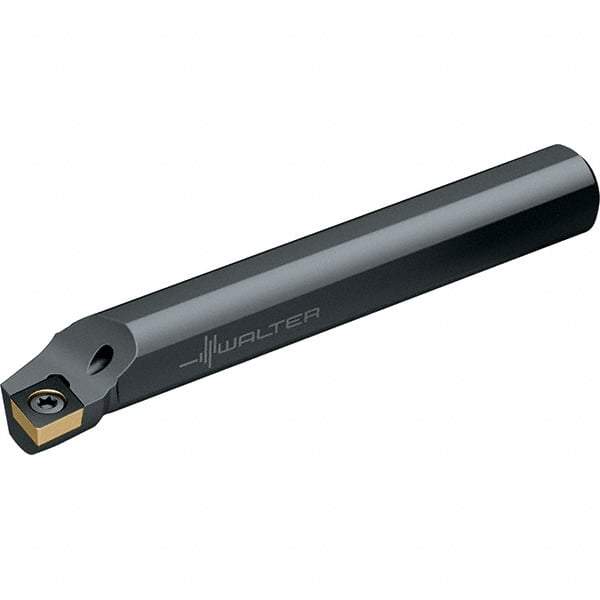

Walter - 0.772" Min Bore Diam, 8" OAL, 5/8" Shank Diam, E-SCLC Indexable Boring Bar - CC.. 0602.., CC.. 21.5.. Insert, Screw Holding Method
Item #: 53042008
Brand: Walter
Model #: 5364752
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | E-SCLC |
| Series | Walter Turn |
| Minimum Bore Diameter (Decimal Inch) | 0.7720 |
| Hand of Holder | Left Hand |
| Overall Length (Decimal Inch) | 8.0000 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Compatibility | CC.. 0602..; CC.. 21.5.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Center to Cutting Edge (Decimal Inch) | 0.4060 |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (mm) | 6.35 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Complete Insert Compatibility | CCGT 060201-PF2; CCGT 060201-PM2; CCGT 060202-1L; CCGT 060202-PF2; CCGT 060202-PF5; CCGT 060202-PM2; CCGT 060204-1L; CCGT 060204-PF2; CCGT 060204-PF5; CCGT 060204-PM2; CCGT 060208-PM2; CCGT 21.5.5-PF5; CCGT 21.50.5-1L; CCGT 21.50.5-PF2; CCGT 21.50.5-PM2; |
| Toolholder Material | Carbide (Shank); Steel (Head) |
