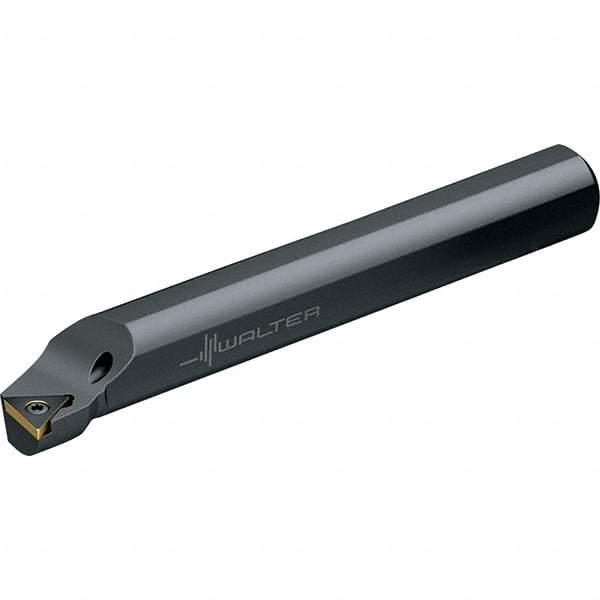

Walter - 1.201" Min Bore Diam, 12" OAL, 1" Shank Diam, A-STFC Indexable Boring Bar - TC.. 16T3.., TC.. 32.5.. Insert, Screw Holding Method
Item #: 53041380
Brand: Walter
Model #: 5204737
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-STFC |
| Series | Walter Turn |
| Minimum Bore Diameter (Decimal Inch) | 1.2010 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 12.0000 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Compatibility | TC.. 16T3..; TC.. 32.5.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Center to Cutting Edge (Decimal Inch) | 0.6400 |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (mm) | 9.53 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Complete Insert Compatibility | TCGT 16T301-PF2; TCGT 16T302-PF2; TCGT 16T302-PM2; TCGT 16T304-1L; TCGT 16T304-PF2; TCGT 16T304-PM2; TCGT 16T308-1L; TCGT 16T308-PF2; TCGT 16T308-PM2; TCGT 32.51-1L; TCGT 32.51-PM2; TCGT 32.52-1L; TCGT 32.52-PM2; TCGT32.5.5-PF2; TCGT32.50.5-PM2; TCGT32.50 |
| Toolholder Material | Steel |
