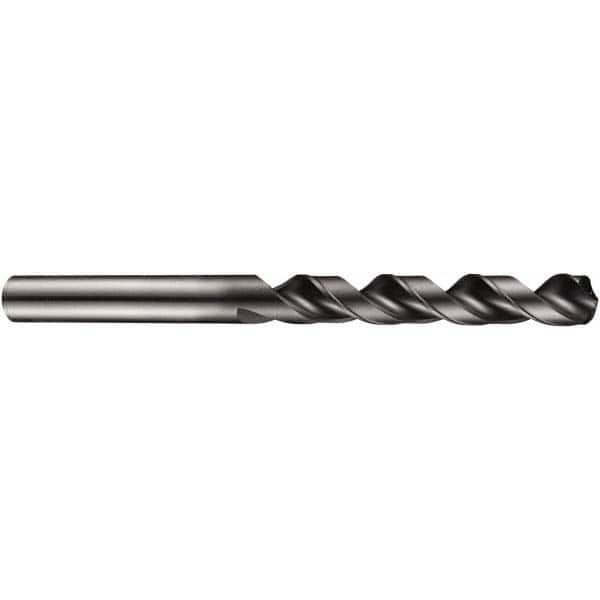

DORMER - 9.5mm 130° Cobalt Jobber Drill
Item #: 78093085
Brand: DORMER
Model #: 0391457
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 9.50 |
| Drill Bit Size (Decimal Inch) | 0.3740 |
| Drill Point Angle | 130 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | TiAlN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Coolant Through |
| Flute Length (mm) | 75.00 |
| Overall Length (mm) | 130.00 |
| Point Type | ADX |
| Shank Diameter (mm) | 10.00 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 40.00 |
| Specification Designation | DIN |
| Web Configuration | Tapered |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 6535HA (Shank) |
| Drill Bit Grade | High Performance |
| Series/List | A553 |
