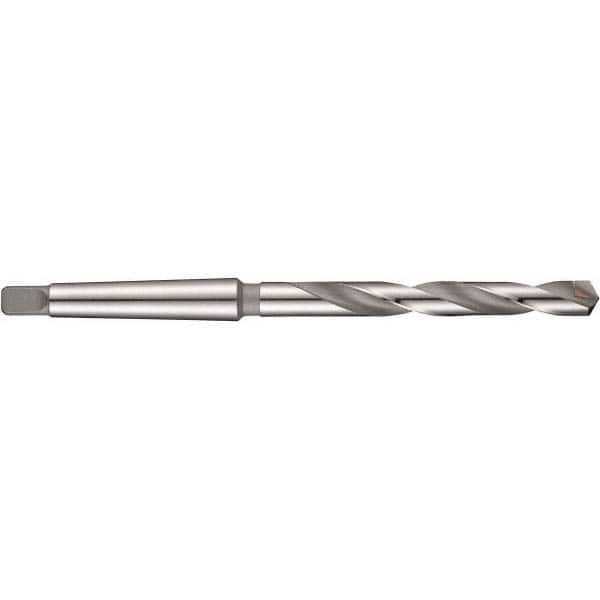

DORMER - 22.5mm, 2MT 118° Point Carbide-Tipped Taper Shank Drill Bit
Item #: 80999048
Brand: DORMER
Model #: 0030028
Features and Benefits
Carbide tips cuts faster than high speed steel. It is commonly used on ferrous and nonferrous materials including cast iron, steel and steel alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 22.50 |
| Drill Bit Size (Decimal Inch) | 0.8858 |
| Drill Point Angle | 118 |
| Shank Taper Designation | 2MT |
| Drill Bit Material | Carbide-Tipped |
| Drill Bit Finish/Coating | Bright/Oxide |
| Flute Type | Spiral |
| Overall Length (mm) | 253.00 |
| Flute Length (mm) | 155.00 |
| Flute Length (Decimal Inch) | 6.1070 |
| Spiral Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 345 |
| Drill Bit Diameter Tolerance (mm) | 0.000 to -0.033 |
| Specification Designation | DIN |
| Series/List | A166 |
