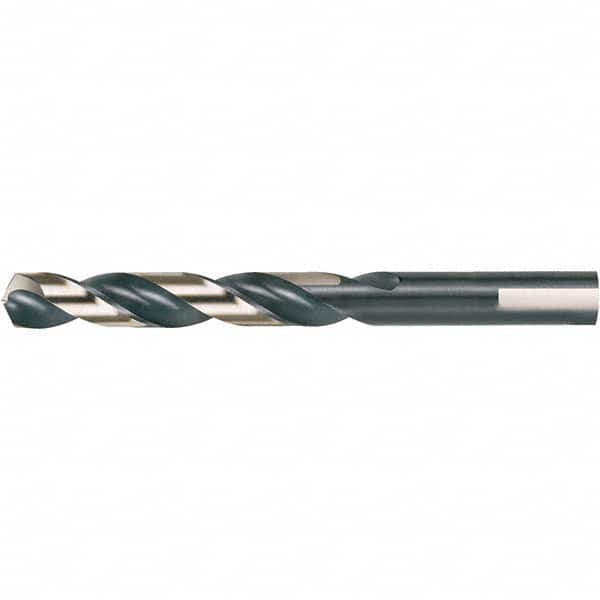

Cle-Force - 11/32" 135° High Speed Steel Jobber Drill
Item #: 57609067
Brand: Cle-Force
Model #: C69357
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Oxide/gold finish provides a polished finish and prevents chip building, galling and welding on a workpiece. It is commonly used on low carbon, stainless steel and ferrous metals.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 11/32 |
| Drill Bit Size (Decimal Inch) | 0.3438 |
| Drill Point Angle | 135 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Oxide/Gold |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Round with Flats |
| Coolant Through | No |
| Flute Length (Inch) | 3-7/16 |
| Flute Length (mm) | 87.31 |
| Flute Length (Decimal Inch) | 3.4375 |
| Overall Length (mm) | 120.65 |
| Overall Length (Decimal Inch) | 4.7500 |
| Overall Length (Inch) | 4-3/4 |
| Point Type | Split Point |
| Shank Diameter (mm) | 8.73 |
| Shank Diameter (Inch) | 11/32 |
| Shank Diameter (Decimal Inch) | 0.3438 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 33.34 |
| Shank Length (Decimal Inch) | 1.3126 |
| Number of Flats | 3 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0010 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | Heavy Duty |
| Series/List | 1607 |
