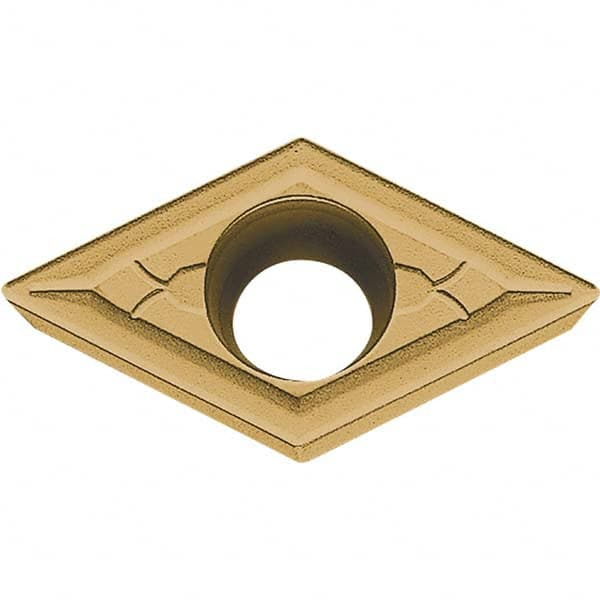

Kyocera - DCMT2152 GK Grade CA025P Carbide Turning Insert
Item #: 97766307
Brand: Kyocera
Model #: 8861808
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DCMT |
| Insert Size | 2152 |
| Material | Carbide |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Corner Radius (Inch) | 1/32 |
| Manufacturer's Grade | CA025P |
| Coating | TiCN/Al2O3/TiN |
| Material Grade | Micro Columnar |
| Chip Breaker | GK |
| Hole Diameter (Decimal Inch) | 0.1102 |
| ISO Number | DCMT070208GK |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | CVD |
| Manufacturers Catalog Number | DCMT2152GK CA025P |
| Primary Workpiece Material | P |
| Included Angle | 55 |
| Insert Hand | Neutral |
| Series | DCMT |
| Insert Holding Method | Screw or Clamp |
| Multi Use Application | External Turning, Copying, Back Boring |
| MultiUseTool | Yes |
| Shape | Diamond |
