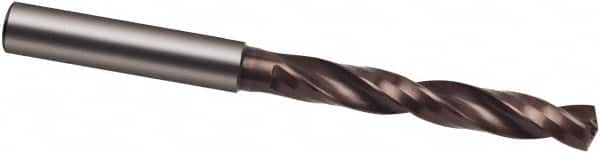

Guhring - 5/16" 140° Solid Carbide Jobber Drill
Item #: 58529926
Brand: Guhring
Model #: 9085210079400
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
nano-Si coatings are made of Titanium Aluminum Silicon Nitride (TiAlSiN) and are similar in performance to Diamond-Like Coatings (DLC). It is one of the hardest of the nano coatings and used in aerospace, medical and energy industries. nano-Si is a proprietary coating exclusive to Guhring, Inc.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 5/16 |
| Drill Bit Size (Decimal Inch) | 0.3126 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | nano-SI |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Coolant Through | Coolant Through |
| Flute Length (mm) | 53.00 |
| Overall Length (mm) | 91.00 |
| Flute Length x Diameter Ratio | 5xD |
| Point Type | HF Point |
| Shank Diameter (mm) | 8.00 |
| Spiral Type | Regular Spiral |
| Specification Designation | DIN |
| Number of Flutes | 2 |
| Web Thinning | Web-Thinning |
| Drill Bit Grade | High Performance |
| Series/List | 8521 |
