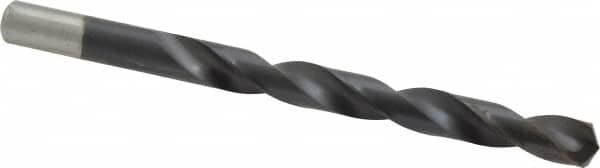

Chicago-Latrobe - Letter W 135° Cobalt Jobber Drill
Item #: 06130728
Brand: Chicago-Latrobe
Model #: 44967
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Letter) | W |
| Drill Bit Size (Decimal Inch) | 0.3860 |
| Drill Point Angle | 135 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | TiAlN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Inch) | 3-3/4 |
| Overall Length (Inch) | 5-1/8 |
| Point Type | Split Point |
| Shank Diameter (Decimal Inch) | 0.3860 |
| Spiral Type | Regular Spiral |
| Specification Designation | NAS |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | -0.0010 to 0.0000 |
| Web Thinning | Web-Thinned |
| Specification Number | NAS 907 |
| Material Grade | M42 |
| Series/List | 550TA |
