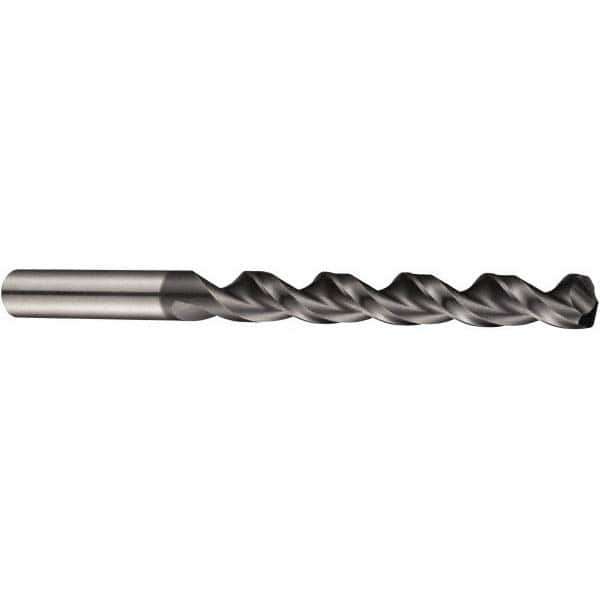

DORMER - 1.75mm 130° Cobalt Jobber Drill
Item #: 65631269
Brand: DORMER
Model #: 0634592
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Aluminum chromium nitride (AlCrN) has higher heat resistance than AlTiN. It is commonly used for machining aircraft and aerospace materials, nickel alloys, stainless steel, titanium, cast iron and carbon steel.
Parabolic flutes are constructed with a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 1.75 |
| Drill Bit Size (Decimal Inch) | 0.0689 |
| Drill Point Angle | 130 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | AlCrN |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 22.00 |
| Flute Length (Decimal Inch) | 0.8668 |
| Overall Length (mm) | 46.00 |
| Overall Length (Decimal Inch) | 1.8124 |
| Flute Length x Diameter Ratio | 6xD |
| Point Type | PFX |
| Specification Designation | ANSI; DIN |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | 0.000 to -0.014 |
| Number of Flutes | 2 |
| Series/List | A901 |
