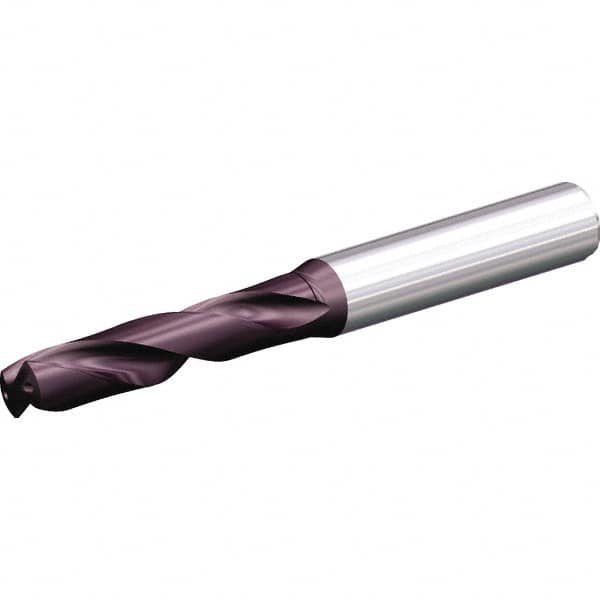

Kennametal - 9.9mm 140° Solid Carbide Jobber Drill
Item #: 38588505
Brand: Kennametal
Model #: 6350472
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Aluminum titanium nitride (AlTiN) is one of the most abrasive-resistant and hardest of the coatings. It is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 9.90 |
| Drill Bit Size (Decimal Inch) | 0.3898 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | AlTiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Coolant Through |
| Flute Length (mm) | 61.00 |
| Flute Length (Decimal Inch) | 2.4016 |
| Overall Length (mm) | 103.00 |
| Flute Length x Diameter Ratio | 5xD |
| Shank Diameter (mm) | 10.00 |
| Maximum Drilling Depth (Decimal Inch) | 1.9291 |
| Maximum Drilling Depth (mm) | 49.00 |
| Shank Length (mm) | 40.00 |
| Shank Length (Decimal Inch) | 1.5748 |
| Drill Point Length (mm) | 1.47 |
| Drill Point Length (Decimal Inch) | 0.0579 |
| Number of Flutes | 2 |
| Material Grade | KCMS15 |
| Series/List | B211SGL |
