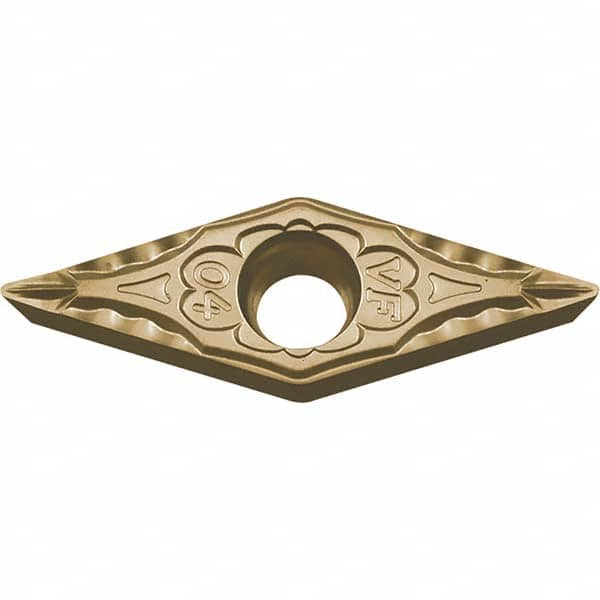

Kyocera - VBMT331 VF Grade CA025P Carbide Turning Insert
Item #: 11382520
Brand: Kyocera
Model #: 8861890
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VBMT |
| Insert Size | 331 |
| Material | Carbide |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 1/64 |
| Manufacturer's Grade | CA025P |
| Coating | TiCN/Al2O3/TiN |
| Material Grade | Micro Columnar |
| Chip Breaker | VF |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | VBMT160404VF |
| Rake | Positive |
| Relief Angle | 5 |
| Coating Process | CVD |
| Manufacturers Catalog Number | VBMT331VF CA025P |
| Primary Workpiece Material | P |
| Included Angle | 35 |
| Insert Hand | Neutral |
| Series | VBMT |
| Insert Holding Method | Screw or Clamp |
| Multi Use Application | External Turning, Copying, Facing, Undercutting, Profiling, Internal Facing, Back Boring |
| MultiUseTool | Yes |
| Shape | Diamond |
