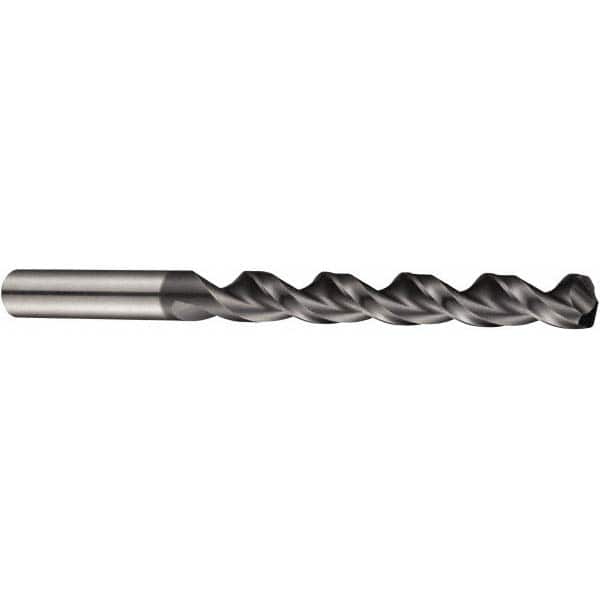

DORMER - 6.5mm 130° Cobalt Jobber Drill
Item #: 78974045
Brand: DORMER
Model #: 0048177
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Aluminum chromium nitride (AlCrN) has higher heat resistance than AlTiN. It is commonly used for machining aircraft and aerospace materials, nickel alloys, stainless steel, titanium, cast iron and carbon steel.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 6.50 |
| Drill Bit Size (Decimal Inch) | 0.2559 |
| Drill Point Angle | 130 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | AlCrN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 63.00 |
| Overall Length (mm) | 101.00 |
| Point Type | Special Point Type |
| Shank Diameter (Decimal Inch) | 0.2559 |
| Spiral Type | Fast Spiral |
| Specification Designation | ANSI; DIN |
| Web Configuration | Tapered |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | High Performance |
| Series/List | A901 |
