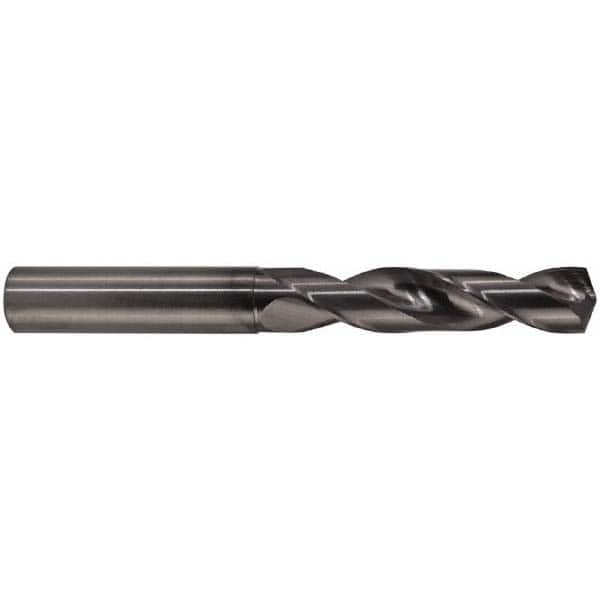

M.A. Ford - 13/64" 142° Solid Carbide Jobber Drill
Item #: 58228107
Brand: M.A. Ford
Model #: 2XDCS2031A
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
ALtima(R) is a stronger designed AlTiN coating. It is commonly used on hardened steels, stainless steel, titanium alloy and other difficult-to-machine materials. ALtima(R) is a proprietary coating exclusive to M.A. Ford Mfg. Co., Inc.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 13/64 |
| Drill Bit Size (Decimal Inch) | 0.2031 |
| Drill Point Angle | 142 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | ALtima |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Coolant Through |
| Flute Length (Decimal Inch) | 1.1020 |
| Overall Length (Decimal Inch) | 2.5980 |
| Flute Length x Diameter Ratio | 3xD |
| Shank Diameter (Inch) | 15/64 |
| Shank Diameter (Decimal Inch) | 0.2344 |
| Shank Size (Inch) | 15/64 |
| Spiral Type | Regular Spiral |
| Specification Designation | Not Specified |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.00000 to -0.00047 |
| Number of Flutes | 2 |
| Series/List | 2XDCS |
