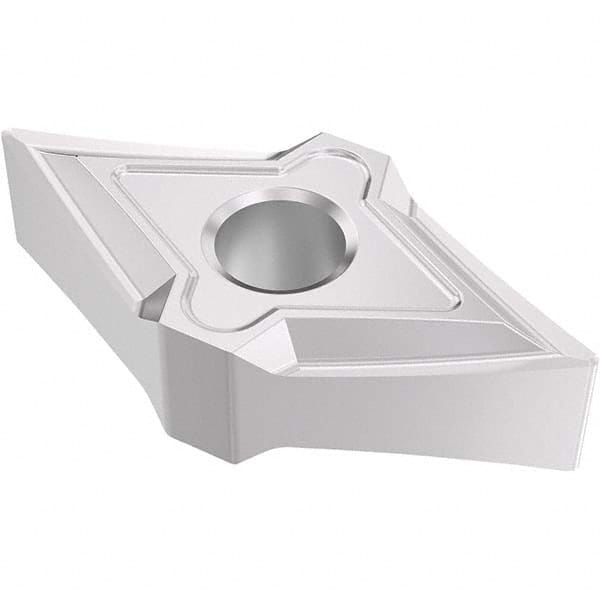

Seco - DNMP441 MF1 Grade TM1501 Carbide Turning Insert
Item #: 99919144
Brand: Seco
Model #: 03276284
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMP |
| Insert Size | 441 |
| Material | Carbide |
| Length (Inch) | 33/64 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 1/4 |
| Corner Radius (Inch) | 1/64 |
| Manufacturer's Grade | TM1501 |
| Coating | TiCN/Al2O3 |
| Chip Breaker | MF1 |
| Overall Length (Decimal Inch) | 0.6102 |
| Hole Diameter (Decimal Inch) | 0.2028 |
| ISO Number | DNMG150604 |
| Lead Angle | 93.000 |
| Rake | Negative |
| Rake Angle | 18 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | DNMP441-MF1 |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Pin & Clamp |
| Cutting Edge Style | Honed |
| FullRadius | No |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Diamond |
