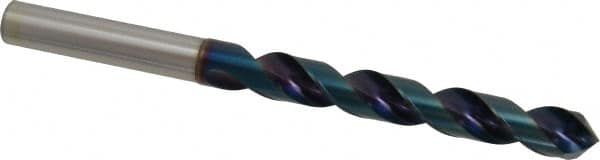

OSG - 1/2" 120° Vanadium High Speed Steel Jobber Drill
Item #: 75800813
Brand: OSG
Model #: 16553115
Features and Benefits
Vanadium high speed steel (HSSE) is made of high speed steel, carbon, vanadium carbide and other alloys to increase abrasive wear resistance and toughness. It is commonly used in general applications on stainless steels and high silicon aluminums.
WD1 is a multi-layer coating that is harder and more resistant to heat than TiAIN. It is commonly used on medium-to-high carbon steels and difficult-to-machine materials. WD1 is a proprietary coating exclusive to OSG Tap and Die, Inc.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 1/2 |
| Drill Bit Size (Decimal Inch) | 0.5000 |
| Drill Point Angle | 120 |
| Drill Bit Material | Vanadium High Speed Steel |
| Drill Bit Finish/Coating | WD1 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 101.00 |
| Overall Length (mm) | 158.00 |
| Point Type | Faceted |
| Shank Diameter (mm) | 12.00 |
| Spiral Type | Fast Spiral |
| Drill Bit Grade | High Performance |
| Series/List | 1650 |
