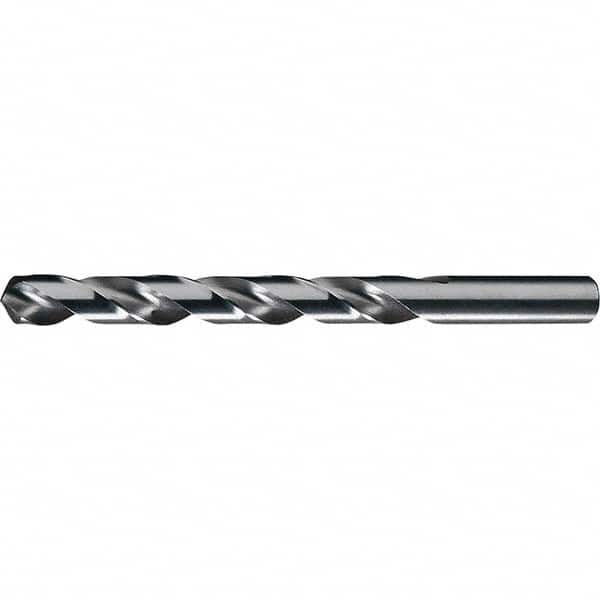

Chicago-Latrobe - 6.9mm 118° High Speed Steel Jobber Drill
Item #: 57599888
Brand: Chicago-Latrobe
Model #: 45306
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 6.90 |
| Drill Bit Size (Decimal Inch) | 0.2717 |
| Drill Point Angle | 118 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 69.00 |
| Flute Length (Decimal Inch) | 2.7165 |
| Overall Length (mm) | 109.00 |
| Overall Length (Decimal Inch) | 4.2913 |
| Shank Diameter (mm) | 6.90 |
| Shank Diameter (Decimal Inch) | 0.2717 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 40.00 |
| Shank Length (Decimal Inch) | 1.5748 |
| Specification Designation | DIN |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0010 |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 338 |
| Drill Bit Grade | General Purpose |
| Series/List | 150D |
