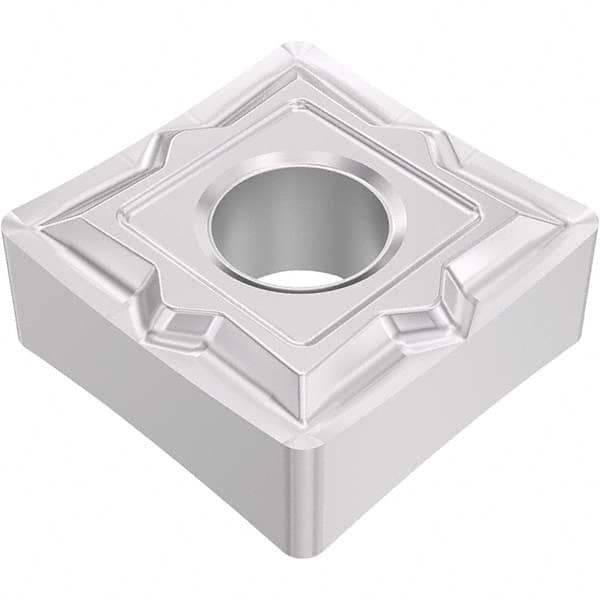

Seco - SNMP433 MF1 Grade TM3501 Carbide Turning Insert
Item #: 18615385
Brand: Seco
Model #: 03276652
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMP |
| Insert Size | 433 |
| Material | Carbide |
| Length (Inch) | 29/64 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 3/64 |
| Manufacturer's Grade | TM3501 |
| Coating | TiCN/Al2O3 |
| Chip Breaker | MF1 |
| Overall Length (Decimal Inch) | 0.5000 |
| Hole Diameter (Decimal Inch) | 0.2028 |
| ISO Number | SNMG120412 |
| Lead Angle | 75.000 |
| Rake | Negative |
| Rake Angle | 18 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | SNMP433-MF1 |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Edge Style | Honed |
| FullRadius | No |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Square |
