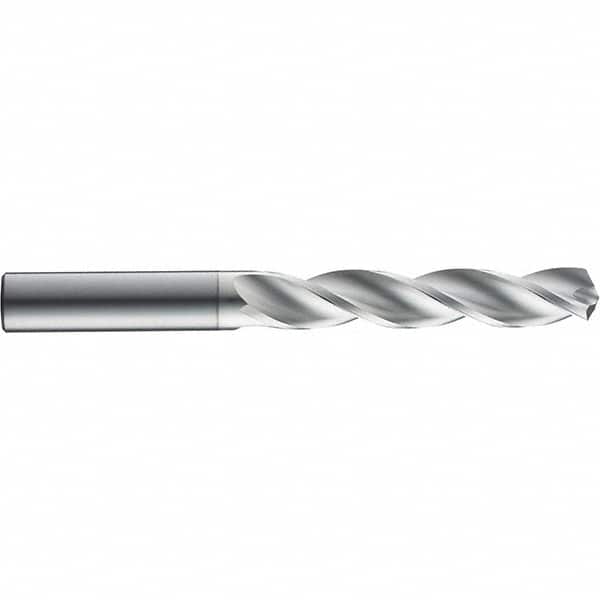

SGS - 7.7mm 124° Solid Carbide Jobber Drill
Item #: 47372107
Brand: SGS
Model #: 64847
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium diboride (TIB2) is a corrosion-resistant ceramic compound made of titanium and boron. It is commonly used on non-ferrous materials including aluminum and magnesium alloys.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 7.70 |
| Drill Point Angle | 124 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiB2 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 53.00 |
| Overall Length (mm) | 91.00 |
| Flute Length x Diameter Ratio | 5xD |
| Point Type | Notched |
| Shank Diameter (mm) | 8.00 |
| Shank Length (mm) | 36.00 |
| Number of Flutes | 3 |
| Additional Information | Cast Iron; Hardened Steels; High Temp Alloys; Non-Ferrous Metals; Stainless Steel; Steel; Titanium |
| Series/List | 131N |
| Additional Information | Cast Iron; Hardened Steels; High Temp Alloys; Non-Ferrous Metals; Stainless Steel; Steel; Titanium |
