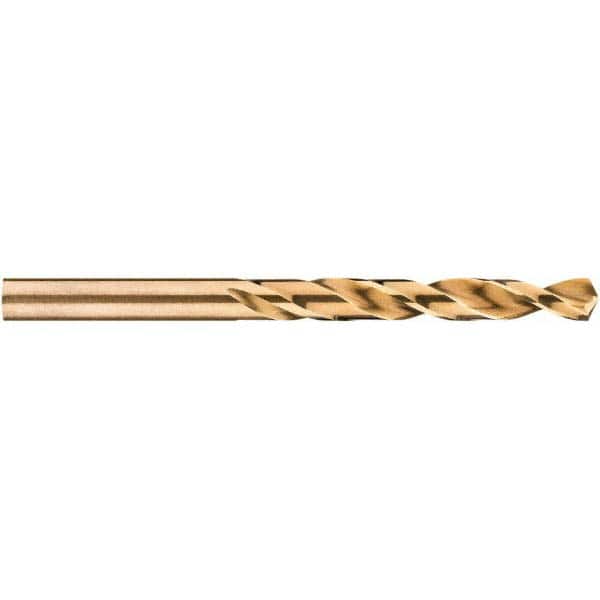

DeWALT - 9.92mm 135° Cobalt Jobber Drill
Item #: 49211022
Brand: DeWALT
Model #: DD4025B6
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 9.92 |
| Drill Bit Size (Decimal Inch) | 0.3906 |
| Drill Point Angle | 135 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | None |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 83.50 |
| Flute Length (Decimal Inch) | 3.2874 |
| Overall Length (mm) | 132.00 |
| Overall Length (Decimal Inch) | 5.1969 |
| Point Type | Split Point |
| Shank Diameter (mm) | 9.92 |
| Shank Diameter (Decimal Inch) | 0.3906 |
| Shank Size (Inch) | 25/64 |
| Maximum Drilling Depth (Decimal Inch) | 3.2874 |
| Maximum Drilling Depth (mm) | 83.50 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 48.50 |
| Shank Length (Inch) | 1 |
| Shank Length (Decimal Inch) | 1.9094 |
| Number of Flats | 3 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | +0.000 to -0.025 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0010 |
| Number of Flutes | 2 |
| Web Thinning | Web-Thinning |
| Drill Bit Grade | M35 |
| Series/List | 135 |
