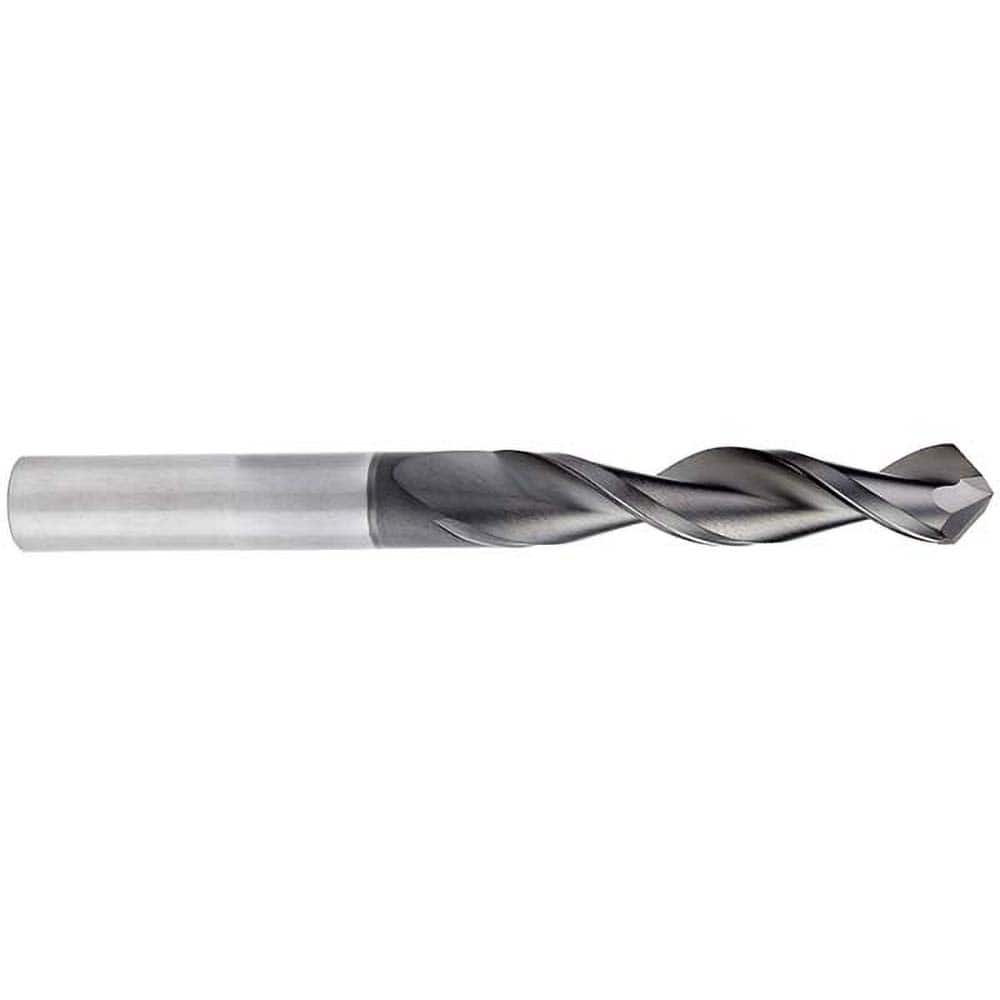

Mapal - 8.4mm 90° Solid Carbide Jobber Drill
Item #: 13358734
Brand: Mapal
Model #: 30401960
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Diamond (PCD) coating is one of the hardest coatings. It is commonly used on concrete, fiberglass, plastic, stone, aluminum alloy and extremely difficult-to-machine materials.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 8.40 |
| Drill Point Angle | 90 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Diamond |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 49.00 |
| Overall Length (mm) | 103.00 |
| Flute Length x Diameter Ratio | 5xD |
| Shank Diameter (mm) | 10.00 |
| Number of Flutes | 2 |
| Series/List | SCD25 |
