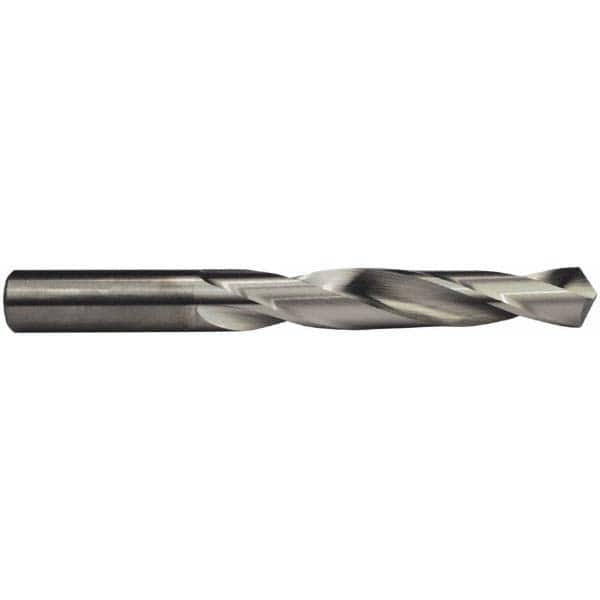

M.A. Ford - Letter I 118° Solid Carbide Jobber Drill
Item #: 58221870
Brand: M.A. Ford
Model #: 20427200A
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
ALtima(R) is a stronger designed AlTiN coating. It is commonly used on hardened steels, stainless steel, titanium alloy and other difficult-to-machine materials. ALtima(R) is a proprietary coating exclusive to M.A. Ford Mfg. Co., Inc.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Letter) | I |
| Drill Bit Size (Decimal Inch) | 0.2720 |
| Drill Point Angle | 118 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | ALtima |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Inch) | 2-1/8 |
| Flute Length (Decimal Inch) | 2.1250 |
| Overall Length (Decimal Inch) | 3.5000 |
| Overall Length (Inch) | 3-1/2 |
| Flute Length x Diameter Ratio | 5xD |
| Point Type | Four Facet |
| Shank Diameter (Decimal Inch) | 0.2720 |
| Spiral Type | Regular Spiral |
| Specification Designation | Not Specified |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0005 |
| Number of Flutes | 2 |
| Additional Information | Modified Standard, Non-Returnable & Non-Cancelable |
| Series/List | 204 |
