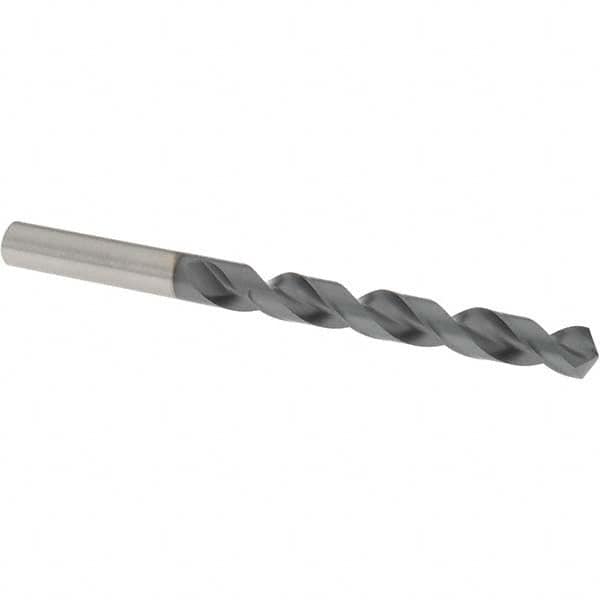

OSG - 10.89914mm 120° Vanadium High Speed Steel Jobber Drill
Item #: 05410584
Brand: OSG
Model #: 8594109
Features and Benefits
Vanadium high speed steel (HSSE) is made of high speed steel, carbon, vanadium carbide and other alloys to increase abrasive wear resistance and toughness. It is commonly used in general applications on stainless steels and high silicon aluminums.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steels, cast iron and aluminum alloys.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 10.90 |
| Drill Bit Size (Decimal Inch) | 0.4291 |
| Drill Point Angle | 120 |
| Drill Bit Material | Vanadium High Speed Steel |
| Drill Bit Finish/Coating | TiCN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 94.00 |
| Overall Length (mm) | 142.00 |
| Point Type | Standard |
| Shank Diameter (mm) | 10.90 |
| Spiral Type | Fast Spiral |
| Web Configuration | Tapered |
| Web Thinning | X-Thinned |
| Drill Bit Grade | High Performance |
| Material Grade | 3% Vanadium |
| Series/List | 1800 |
