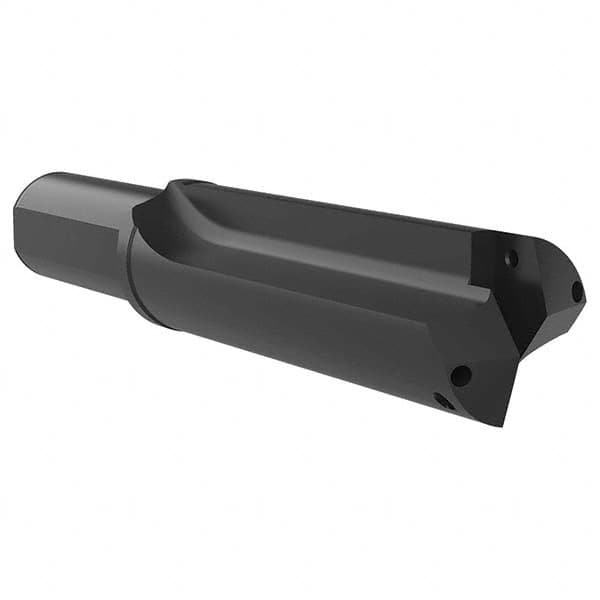

Allied Machine and Engineering - 2-1/2" to 3-1/2" Diam 6-49/64" Max Depth Straight Flute Spade Drill
Item #: 12329157
Brand: Allied Machine and Engineering
Model #: 22050S-200F
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 5 |
| Minimum Drill Diameter (Inch) | 2-1/2 |
| Maximum Drill Diameter (Inch) | 3-1/2 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (Inch) | 2 |
| Spade Drill Length | Short Length |
| Overall Length (Inch) | 13-1/4 |
| Maximum Drill Depth (Inch) | 6-49/64 |
| Flute Type | Straight Flute |
| Body Length (Inch) | 8-1/2 |
| Shank Length (Inch) | 4-1/2 |
| Series Code/Seat Size | 5 |
| Through Coolant | Yes |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/2 |
