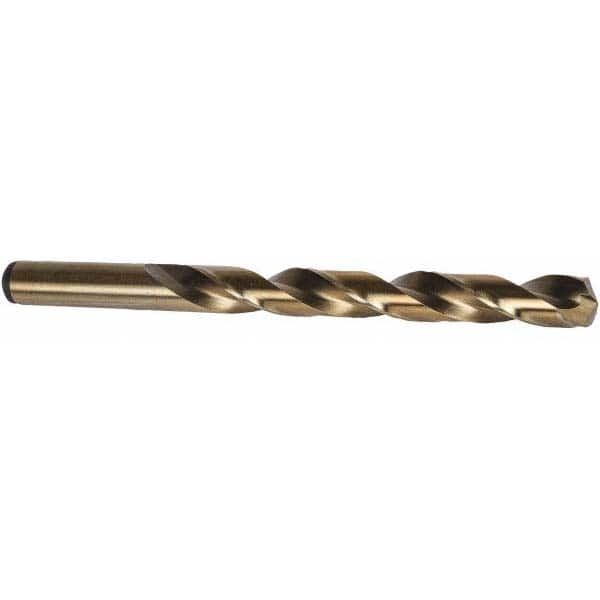

Precision Twist Drill - 9mm 135° Cobalt Jobber Drill
Item #: 78513777
Brand: Precision Twist Drill
Model #: 016490
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Oxide/gold finish provides a polished finish and prevents chip building, galling and welding on a workpiece. It is commonly used on low carbon, stainless steel and ferrous metals.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 9.00 |
| Drill Bit Size (Decimal Inch) | 0.3543 |
| Drill Point Angle | 135 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | Oxide/Gold |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Inch) | 3-3/16 |
| Flute Length (mm) | 81.00 |
| Overall Length (mm) | 125.00 |
| Overall Length (Inch) | 4-59/64 |
| Point Type | Split Point |
| Spiral Type | Regular Spiral |
| Specification Designation | DIN; NAS |
| Web Configuration | Tapered |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 338; NAS 907 |
| Drill Bit Grade | Heavy Duty |
| Series/List | 2ACO |
