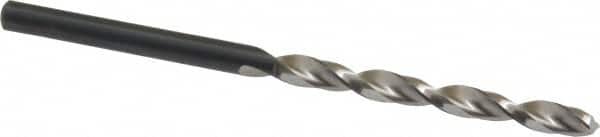

Walter-Titex - 3.7mm 130° Cobalt Jobber Drill
Item #: 01501816
Brand: Walter-Titex
Model #: 5060574
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Oxide prevents chip building, galling and welding on the workpiece. It is commonly used on low carbons, stainless steel and ferrous metals.
Parabolic flutes are constructed with a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 3.70 |
| Drill Bit Size (Decimal Inch) | 0.1457 |
| Drill Point Angle | 130 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | Oxide |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Inch) | 1-17/32 |
| Overall Length (Inch) | 2-3/4 |
| Point Type | Split Point |
| Shank Diameter (Decimal Inch) | 0.1457 |
| Specification Designation | BS; DIN |
| Web Configuration | Tapered |
| Web Thinning | Web-Thinned |
| Specification Number | BS 328; DIN 338 |
| Drill Bit Grade | High Performance |
| Series/List | A1247 |
