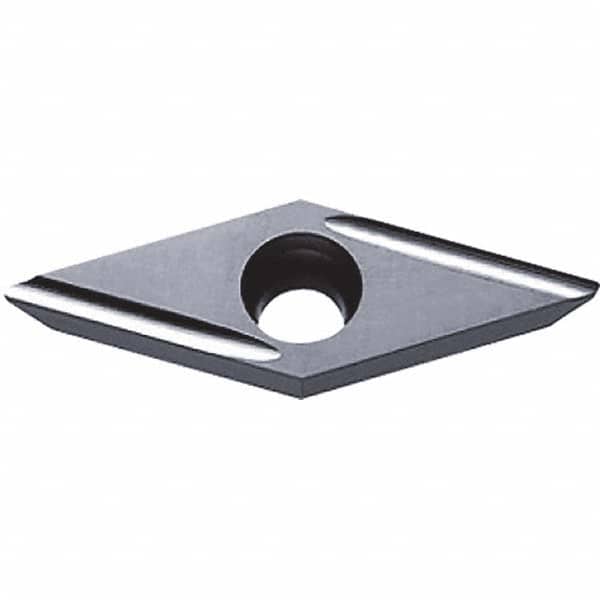

Kyocera - VPET22013 MF-U Grade PR1725 Carbide Turning Insert
Item #: 11394038
Brand: Kyocera
Model #: 8863650
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VPET |
| Insert Size | 22013 |
| Material | Carbide |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Corner Radius (Decimal Inch) | 0.0020 |
| Manufacturer's Grade | PR1725 |
| Coating | Megacoat Nano Plus |
| Chip Breaker | MF-U |
| Hole Diameter (Decimal Inch) | 0.1102 |
| ISO Number | VPET1103005MFR-U |
| Rake | Positive |
| Relief Angle | 11 |
| Coating Process | PVD |
| Manufacturers Catalog Number | VPET22013MFRU PR1725 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M |
| Included Angle | 35 |
| Insert Hand | Right Hand |
| Series | VPET |
| Insert Holding Method | Screw or Clamp |
| Cutting Edge Style | Sharp |
| Multi Use Application | External Turning, Copying, Facing, Undercutting, Profiling, Internal Facing, Back Boring |
| MultiUseTool | Yes |
| Shape | Diamond |
