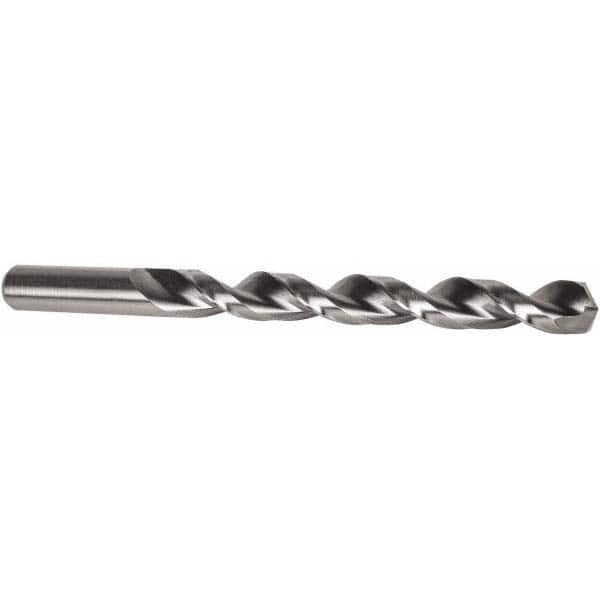

Precision Twist Drill - 14.5mm 135° Point High Speed Steel Jobber Drill
Item #: 78507746
Brand: Precision Twist Drill
Model #: 014945
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Parabolic flutes are constructed with a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 14.50 |
| Drill Bit Size (Decimal Inch) | 0.5709 |
| Drill Point Angle | 135 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Inch) | 4-31/64 |
| Flute Length (mm) | 114.00 |
| Overall Length (mm) | 169.00 |
| Overall Length (Inch) | 6-21/32 |
| Point Type | Split Point |
| Shank Diameter (mm) | 14.50 |
| Specification Designation | ANSI |
| Web Configuration | Tapered |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | Heavy Duty |
| Series/List | QC21PM |
