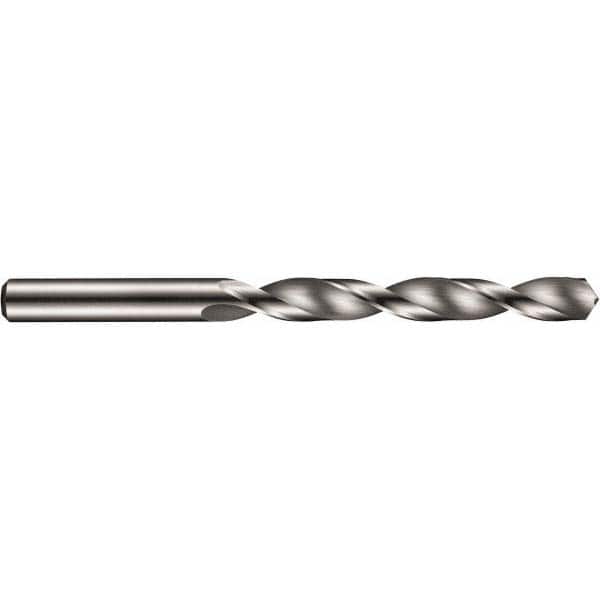

DORMER - 5.5mm 120° Solid Carbide Jobber Drill
Item #: 65667677
Brand: DORMER
Model #: 0113967
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 5.50 |
| Drill Bit Size (Decimal Inch) | 0.2165 |
| Drill Point Angle | 120 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 57.00 |
| Flute Length (Decimal Inch) | 2.2458 |
| Overall Length (mm) | 93.00 |
| Overall Length (Decimal Inch) | 3.6642 |
| Flute Length x Diameter Ratio | 4xD |
| Point Type | Four Facet |
| Spiral Type | Regular Spiral |
| Specification Designation | DIN |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | 0.000 to -0.012 |
| Number of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 338 |
| Series/List | R100 |
