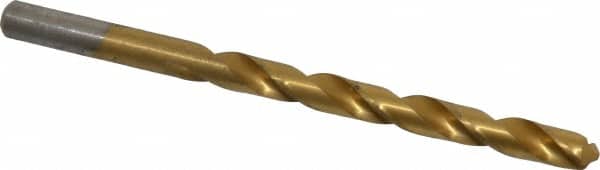

Chicago-Latrobe - 17/64" 118° High Speed Steel Jobber Drill
Item #: 93094712
Brand: Chicago-Latrobe
Model #: 70217
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 17/64 |
| Drill Bit Size (Decimal Inch) | 0.2656 |
| Drill Point Angle | 118 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | TiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Inch) | 2-7/8 |
| Overall Length (Inch) | 4-1/8 |
| Point Type | Standard |
| Shank Diameter (Inch) | 17/64 |
| Spiral Type | Regular Spiral |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | -0.0010 to 0.0000 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | General Purpose |
| Series/List | 150T |
