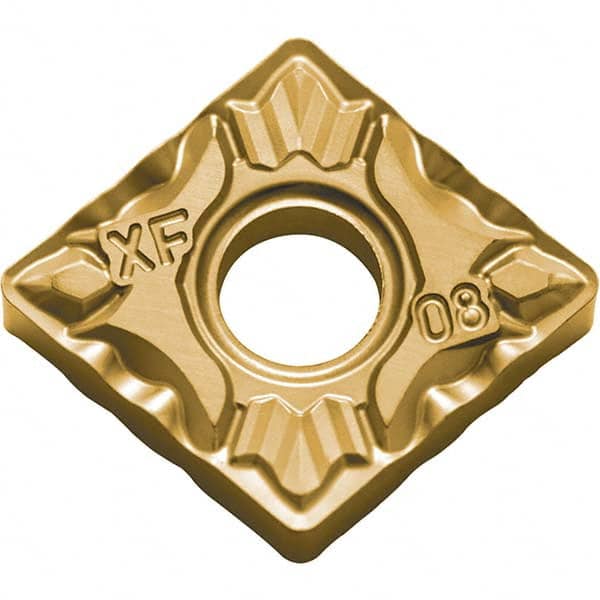

Kyocera - CNMG432 XF Grade CCX Cermet Turning Insert
Item #: 96191879
Brand: Kyocera
Model #: 8863098
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 432 |
| Material | Cermet |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 1/32 |
| Manufacturer's Grade | CCX |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | XF |
| Hole Diameter (Decimal Inch) | 0.2031 |
| ISO Number | CNMG120408XF |
| Rake | Negative |
| Coating Process | CVD |
| Manufacturers Catalog Number | CNMG432XF CCX |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | K |
| Included Angle | 80 |
| Insert Hand | Neutral |
| Material | Cermet |
| Corner Radius (Decimal Inch) | 1/32 |
| Coating Process | CVD |
| Coating | TiCN/Al2O3/TiN |
| Material | Cermet |
| Manufacturer's Grade | CCX |
| Insert Style | CNMG |
| Insert Size | 432 |
| Shape | Diamond |
| Coating Process | CVD |
| Coating | TiCN/Al2O3/TiN |
| Material | Cermet |
| Manufacturer's Grade | CCX |
| Insert Style | CNMG |
| Insert Size | 432 |
| Series | CNMG |
| Series | CNMG |
| Insert Hand | Neutral |
| Series | CNMG |
| Insert Holding Method | Screw or Clamp |
| Multi Use Application | External Turning, Facing, Boring, Internal Facing |
| MultiUseTool | Yes |
| Shape | Diamond |
