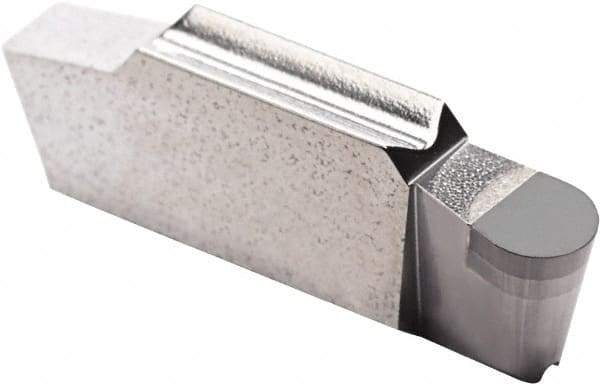

Seco - 1304LCGN Grade CBN010, 0.157" Cutting Width PCBN Grooving Insert - 0.157" Max Depth of Cut, Neutral, 0.0787" Corner Radius
Item #: 52895448
Brand: Seco
Model #: 11350
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | LCGN |
| Insert Size | 1304 |
| Material | PCBN |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Inch) | 0.1570 |
| Cutting Width (Decimal Inch) | 0.1570 |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Inch) | 0.1570 |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Manufacturer's Grade | CBN010 |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.00 |
| Cutting Height (Inch) | 0.1570 |
| Cutting Height (Decimal Inch) | 0.1570 |
| Lead Angle | 0 |
| Multi-Use Tool | Yes |
| Minimum Corner Radius (Decimal Inch) | 0.0777 |
| Maximum Corner Radius (Decimal Inch) | 0.0797 |
| Corner Radius (mm) | 2.00 |
| Corner Radius (Inch) | 0.0787 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Series | MDT |
