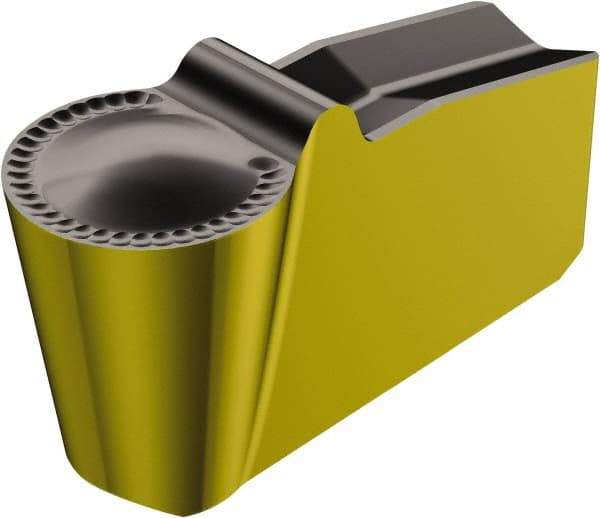

Sandvik Coromant - 30N151.2-A.. 5P 1/8" Cutting Width Carbide Grooving Insert - 1.3mm Max Depth of Cut, Neutral, 1/16" Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 52874880
Brand: Sandvik Coromant
Model #: 5736800
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N151.2-A.. |
| Insert Size | 30 |
| Material | Carbide |
| Cutting Width (mm) | 3.18 |
| Cutting Width (Inch) | 1/8 |
| Cutting Width (Decimal Inch) | 0.1250 |
| Maximum Depth of Cut (mm) | 1.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.0512 |
| Coating | TiCN/Al2O3/TiN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 6.78 |
| Cutting Height (Decimal Inch) | 0.2672 |
| Insert Seat Size | 30 |
| Chipbreaker | 5P |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Minimum Corner Radius (Decimal Inch) | 0.0625 |
| Corner Radius (mm) | 1.58 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Coating Process | MT-CVD |
| Series | T-Max Q-Cut |
| Rake | Positive |
| ISO Number | N151.2-A125-30-5P 4225 |
| Manufacturers Catalog Number | N151.2-A125-30-5P 4225 |
| Overall Width (Decimal Inch) | 0.1250 |
| Insert Thickness (Decimal Inch) | 0.2672 |
