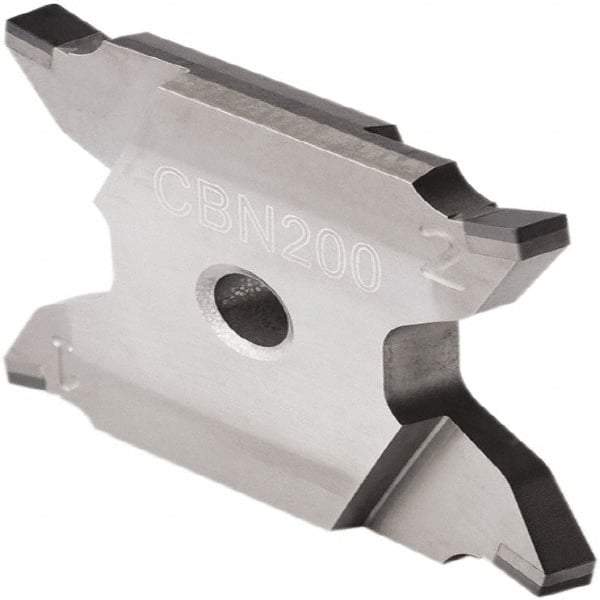

Seco - 2503015X4GKR Grade CBN200, 0.08" Cutting Width PCBN Grooving Insert - 0.256" Max Depth of Cut, Right Hand, 0.15mm Corner Radius
Item #: 52815529
Brand: Seco
Model #: 42739
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | X4GKR |
| Insert Size | 2503015 |
| Material | PCBN |
| Cutting Width (mm) | 2.15 |
| Cutting Width (Inch) | 0.0800 |
| Cutting Width (Decimal Inch) | 0.0800 |
| Maximum Depth of Cut (mm) | 6.50 |
| Maximum Depth of Cut (Inch) | 0.2560 |
| Maximum Depth of Cut (Decimal Inch) | 0.2560 |
| Manufacturer's Grade | CBN200 |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 20.40 |
| Cutting Height (Inch) | 0.8030 |
| Cutting Height (Decimal Inch) | 0.8030 |
| Lead Angle | 0 |
| Multi-Use Tool | Yes |
| Minimum Corner Radius (Decimal Inch) | 0.0047 |
| Maximum Corner Radius (Decimal Inch) | 0.0071 |
| Corner Radius (mm) | 0.15 |
| Series | X4 |
