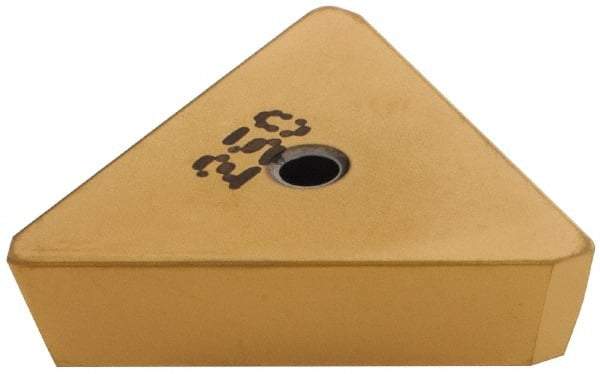

Iscar - TPKN43 Grade IC250 Carbide Milling Insert - TiCN/TiN Finish, 0.1874" Thick, 1/2" Inscribed Circle
Item #: 52740784
Brand: Iscar
Model #: 5600511
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPKN |
| Insert Size | 43 |
| Material | Carbide |
| Material Grade | C5/C6 |
| Manufacturer's Grade | IC250 |
| Coating | TiCN/TiN |
| Length (Decimal Inch) | 0.8661 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1874 |
| Relief Angle | 11.000 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 60 |
| Shape | Triangle |
| Insert Hand | Right Hand |
| ISO Number | TPKN 1204PDTR |
