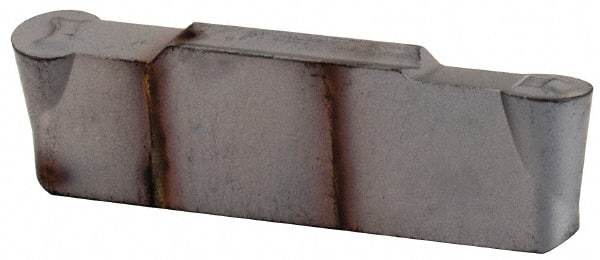

Iscar - 3015HFPL Grade IC354, 3mm Cutting Width Carbide Grooving Insert - 1.5mm Max Depth of Cut, Left Hand, TiCN Finish
Item #: 52721859
Brand: Iscar
Model #: 6200076
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HFPL |
| Insert Size | 3015 |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 1.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0591 |
| Material Grade | C5/C6 |
| Manufacturer's Grade | IC354 |
| Coating | TiCN |
| Insert Hand | Left Hand |
| Lead Angle | 0 |
| Relief Angle | 7 |
| Multi-Use Tool | No |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.7480 |
