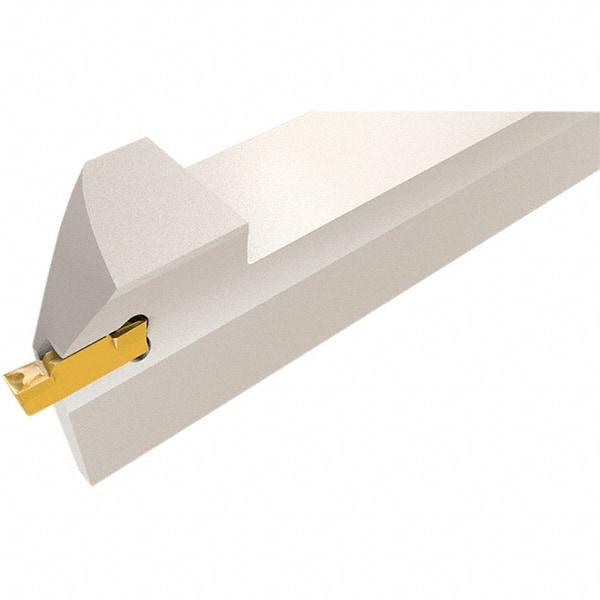

Iscar - HFH, Internal or External, Right Hand, 5.3mm Max Depth of Cut, 3 to 6mm Groove Width, Indexable Grooving Tool Holder - HFPR Insert Compatibility, 20mm Shank Height, 20mm Shank Width, 130mm OAL
Item #: 52721305
Brand: Iscar
Model #: 2500141
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal or External |
| Toolholder Type | Face Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2087 |
| Maximum Depth of Cut (mm) | 5.30 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (mm) | 6.00 |
| Maximum Groove Width (Decimal Inch) | 0.2362 |
| Overall Length (mm) | 130.00 |
| Overall Length (Decimal Inch) | 5.1181 |
| Toolholder Style | HFH |
| Insert Compatibility | HFPR |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Series | Heliface |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 20.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7874 |
| Maximum Groove Outside Diameter (mm) | 2000.00 |
| Minimum Axial Groove Inside Diameter(mm) | 20.00 |
| Head Height (Decimal Inch) | 1.1417 |
| Head Height (mm) | 29.00 |
| Complete Insert Compatibility | HFPR 3003; HFPR 3015; HFPR 4004; HFPR 4020; HFPR 5004; HFPR 5025; HFPR 6004; HFPR 6030 |
