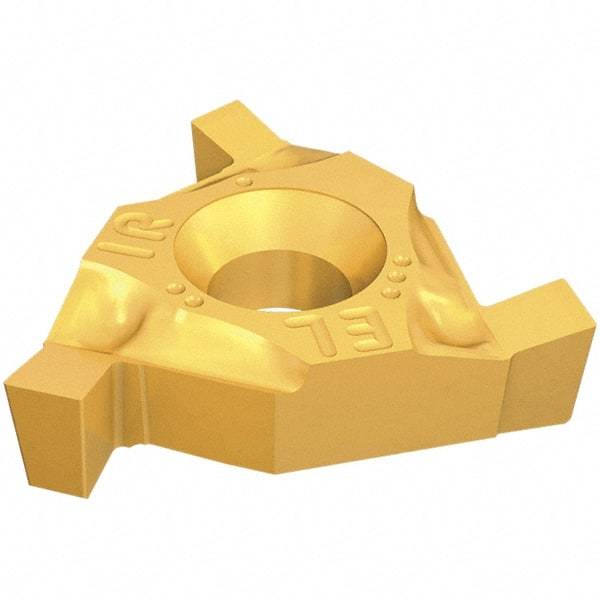

Iscar - GTGA16 Grade IC528, 1.4mm Cutting Width, Double End, Carbide Grooving Insert - TiCN/TiN Finish, 1.8mm Depth of Cut, Internal Right Hand & External Left Hand, 0.1mm Corner Radius
Item #: 52718285
Brand: Iscar
Model #: 3355058
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GTGA |
| Insert Size | 16 |
| Material | Carbide |
| Cutting Width (mm) | 1.40 |
| Cutting Width (Decimal Inch) | 0.0550 |
| Maximum Depth of Cut (mm) | 1.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.0710 |
| Manufacturer's Grade | IC528 |
| Coating | TiCN/TiN |
| Insert Hand | Internal Right External Left |
| Multi-Use Tool | No |
| Multi-Use Application | Grooving; Parting; Turning |
| Maximum Corner Radius (Decimal Inch) | 0.0040 |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Coating Process | PVD |
| Series | Cut Grip |
| ISO Number | GTGA 16EL/IR 140 IC528 |
| Manufacturers Catalog Number | 3355058 |
| Overall Width (mm) | 1.40 |
| Overall Width (Decimal Inch) | 0.0551 |
