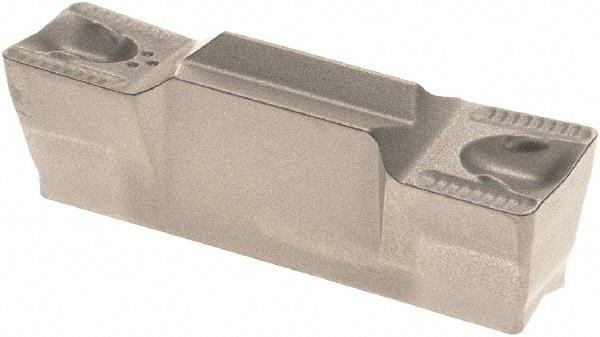

Iscar - 5005GRIP Grade IC08, 5mm Cutting Width Carbide Grooving Insert - 3mm Max Depth of Cut, Neutral, 0.5mm Corner Radius, Uncoated
Item #: 52717683
Brand: Iscar
Model #: 6200087
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GRIP |
| Insert Size | 5005 |
| Material | Carbide |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Manufacturer's Grade | IC08 |
| Coating | Uncoated |
| Insert Hand | Neutral |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting; Turning |
| Corner Radius (mm) | 0.50 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Overall Length (mm) | 19.00 |
| Overall Length (Decimal Inch) | 0.7480 |
| Series | Heli-Grip |
| Overall Width (mm) | 5.00 |
| Overall Width (Decimal Inch) | 0.1969 |
