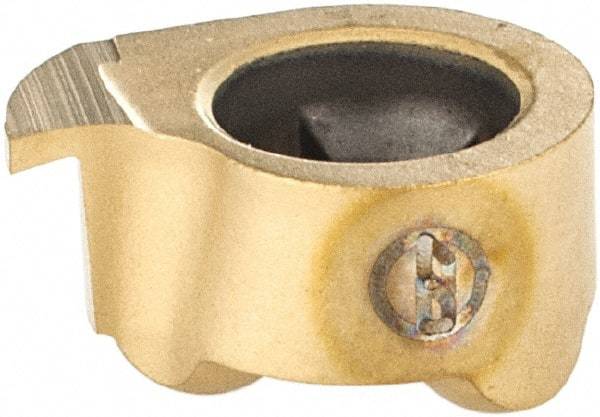

Iscar - 8050000GIQR Grade IC528, 0.5mm Cutting Width Carbide Grooving Insert - Right Hand, TiCN/TiN Finish
Item #: 52717246
Brand: Iscar
Model #: 6402472
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIQR |
| Insert Size | 8050000 |
| Material | Carbide |
| Cutting Width (mm) | 0.50 |
| Cutting Width (Decimal Inch) | 0.0197 |
| Material Grade | C5/C6 |
| Manufacturer's Grade | IC528 |
| Coating | TiCN/TiN |
| Insert Hand | Right Hand |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.00 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Coating Process | PVD |
| Overall Length (mm) | 7.78 |
| Overall Length (Decimal Inch) | 0.3063 |
| Manufacturers Catalog Number | GIQR 8-0.50-0.00 |
