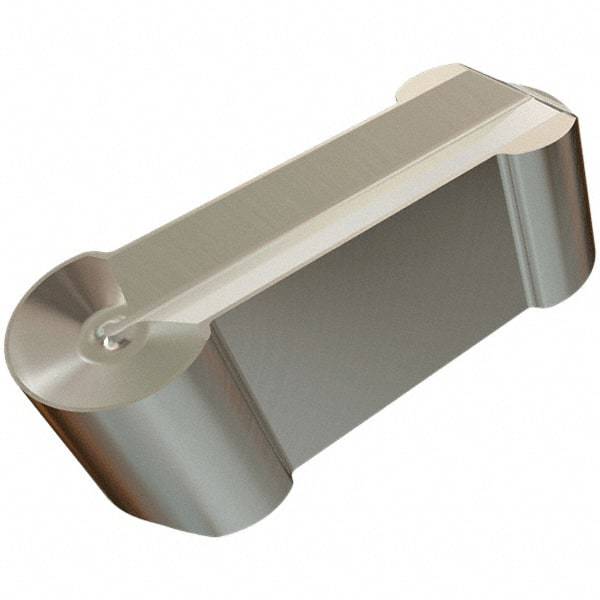

Iscar - 600300GIPA Grade ID5, 6mm Cutting Width Diamond Tipped Grooving Insert - 3mm Max Depth of Cut, Neutral, 3mm Corner Radius
Item #: 52716891
Brand: Iscar
Model #: 6401920
Exact Tooling IR#: 04
Features and Benefits
Diamond tips are one of the hardest cutting materials. It is brazed onto a carbide insert. Commonly used at high cutting speeds on non-ferrous metals.
| Product Specifications | |
|---|---|
| Insert Style | GIPA |
| Insert Size | 600300 |
| Material | Diamond Tipped |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Manufacturer's Grade | ID5 |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 3.00 |
| Corner Radius (Decimal Inch) | 0.1181 |
| Overall Length (Decimal Inch) | 0.5906 |
