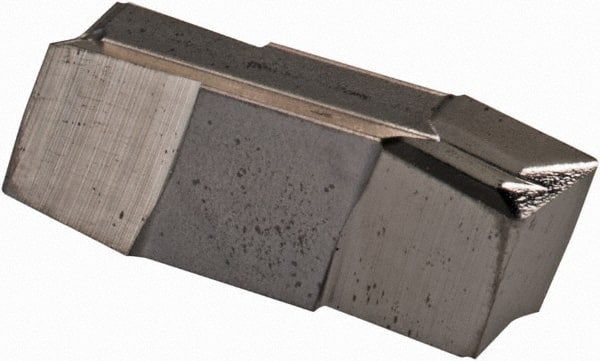

Iscar - GIPA 4.00-0.40 IC20 Carbide Grooving Insert
Item #: 52716842
Brand: Iscar
Model #: 6402108
Product Specifications
| Insert Style | GIPA |
| Insert Size | 400040 |
| Material | Carbide |
| Cutting Width (mm) | 3.99 |
| Cutting Width (Decimal Inch) | 0.1570 |
| Maximum Depth of Cut (mm) | 2.39 |
| Maximum Depth of Cut (Decimal Inch) | 0.0940 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Insert Hand | Neutral |
| Cutting Height (mm) | 5.00 |
| Cutting Height (Decimal Inch) | 0.1970 |
| Relief Angle | 7 |
| Multi-Use Application | Boring; Facing; Grooving; Turning |
| Multi-Use Tool | Yes |
| Corner Radius (mm) | 0.41 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Overall Length (mm) | 14.99 |
| Overall Length (Decimal Inch) | 0.5900 |
| Series | Cut Grip |
| ISO Number | GIPA 4.00-0.40 |
| Manufacturers Catalog Number | GIPA 4.00-0.40 |
| Series Number | Cut Grip |
| Insert Holding Method | Self Grip |
| Corner Radius (Inch) | 0.0160 |
