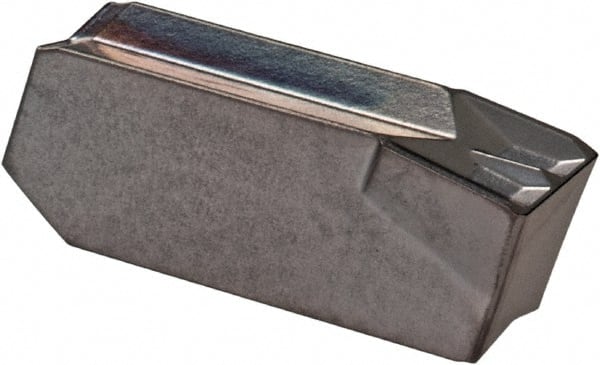

Grooving Insert: GIM44W IC354, Solid Carbide TiCN Finish, Right Hand, 0.1575″ Cutting Width, Series Cut-Grip
Item #: 52715067
Brand: Iscar
Model #: 6402264
Product Specifications
| Insert Style | GIM |
| Insert Size Code | 44 |
| Insert Size | 44 |
| Insert Material | Solid Carbide |
| Material Grade | P40 |
| Manufacturer Grade | IC354 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Cutting Width (mm) | 4.00 |
| Insert Holding Method | Self Grip |
| Insert Hand | Right Hand |
| Corner Radius (mm) | 0.25 |
| Corner Radius (Decimal Inch) | 0.0098 |
| Lead Angle | 4 |
| Rake | Positive |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning; Parting |
| Series | Cut Grip |
| Coating Process | PVD |
| Rake Angle | 7.00 |
| Overall Length (Decimal Inch) | 0.6024 |
| Overall Length (mm) | 15.30 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Iso Code | GIM 4-4RA |
| Standards | ISO 13399 |
| Manufacturers Catalog Number | GIM 4-4RA |
| Chip Breaker | W |
| Full Radius | No |
| Coating/Finish | TiCN |
| Single Or Double End | Double |
