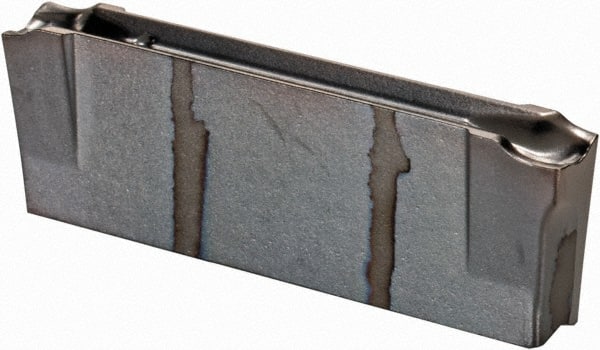

Iscar - DGR 3102J-15D IC-354 Carbide Cutoff Insert
Item #: 52701034
Brand: Iscar
Model #: 6002575
Product Specifications
| Material | Carbide |
| Insert Style | DGR |
| Insert Size | 3102 |
| Lead Angle Direction | Right Hand |
| Lead Angle | 15 |
| Cutting Width (mm) | 3.10 |
| Cutting Width (Decimal Inch) | 0.1220 |
| Material Grade | P40 |
| Manufacturer's Grade | IC354 |
| Coating | TiN/TiAlN |
| Series | Cut-Grip |
| Relief Angle | 7 |
| Chipbreaker | J |
| Maximum Depth of Cut (mm) | 18.01 |
| Maximum Depth of Cut (Decimal Inch) | 0.7090 |
| Full Radius | No |
| Multi-Use Application | No |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0080 |
| Corner Radius (mm) | 0.20 |
| Insert Holding Method | Self Grip |
| Manufacturers Catalog Number | DGR 3102J-15D |
| Single or Double End | Double |
