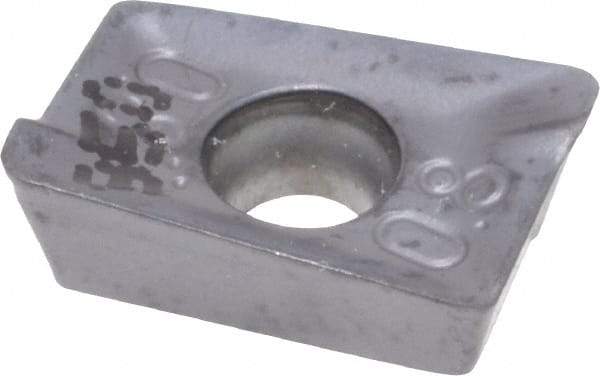

Iscar - APKT100308 RM Grade IC950 Carbide Milling Insert - TiAlN Finish, 0.1366" Thick, 0.8mm Corner Radius
Item #: 52693306
Brand: Iscar
Model #: 5601963
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | APKT |
| Insert Size | 100308 |
| Material | Carbide |
| Material Grade | C1/C2/C3/C5/C6 |
| Manufacturer's Grade | IC950 |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.2638 |
| Length (Decimal Inch) | 0.3898 |
| Thickness (Decimal Inch) | 0.1366 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | RM |
| ISO Number | APKT 100308PDTR-RM |
