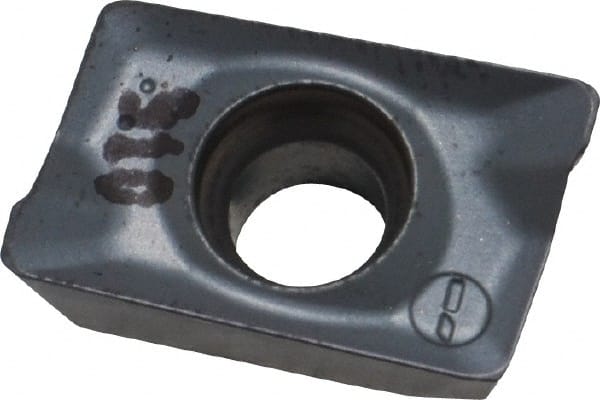

ADKT 1505PDR-HM IC910 Carbide Milling Insert AlTiN Finish, 0.5413″ Long x 0.222″ Thick x 0.3768″ Wide
Item #: 52692241
Brand: Iscar
Model #: 5601900
Product Specifications
| Insert Style | ADKT |
| Insert Size Code | 1505 |
| Insert Size | 1505 |
| Insert Material | Solid Carbide |
| Material Grade | C3; C6; C2 |
| Manufacturer Grade | IC910 |
| Thickness Range (Decimal Inch) | 0.2200 to 0.2350 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Relief Angle | 15.00 |
| Series | HELIMILL |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.4720 |
| Maximum Depth of Cut (mm) | 12.00 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Iso Code | ADKT 1505 PDR-HM |
| Standards | ISO 13399 |
| Chip Breaker | HM |
| Shape | Parallelogram |
| Coating/Finish | Coated |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.3768 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2220 |
| Length (Decimal Inch - 4 Decimals) | 0.5413 |
