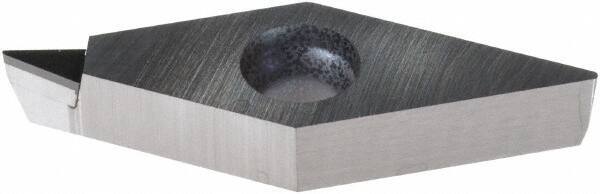

Kyocera - VBMT220.2 Grade KPD010 Polycrystalline Diamond (PCD) Turning Insert - Uncoated, 35° Diamond, 1/4" Inscr Circle, 1/8" Thick, 0.004" Corner Radius
Item #: 52569845
Brand: Kyocera
Model #: 8805502
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | VBMT |
| Insert Size | 220.2 |
| Material | Polycrystalline Diamond (PCD) |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (mm) | 3.18 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Manufacturer's Grade | KPD010 |
| Coating | Uncoated |
| Hole Diameter (mm) | 2.79 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| ISO Number | VBMT110301 |
| Rake | Positive |
| Rake Angle | 10 |
| Relief Angle | 5 |
| Manufacturers Catalog Number | VBMT2202 KPD010 |
| Primary Workpiece Material | S |
| Included Angle | 35 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Diamond |
