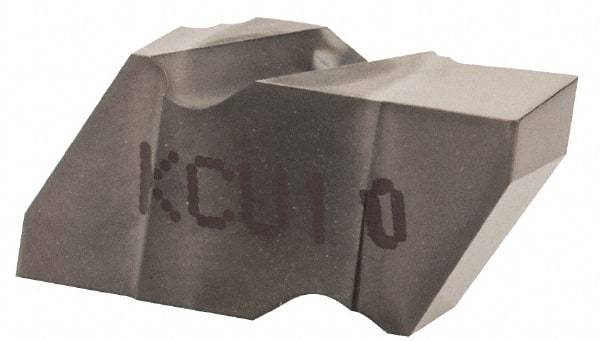

Kennametal - 2125NG Grade KCU10, 3.18mm Cutting Width Carbide Grooving Insert - 2.79mm Max Depth of Cut, Left Hand, 0.19mm Corner Radius, AlTiN Finish
Item #: 52522125
Brand: Kennametal
Model #: 4175860
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | NG |
| Insert Size | 2125 |
| Material | Carbide |
| Cutting Width (mm) | 3.18 |
| Cutting Width (Decimal Inch) | 0.1252 |
| Maximum Depth of Cut (mm) | 2.79 |
| Maximum Depth of Cut (Decimal Inch) | 0.1098 |
| Material Grade | C3/C4 |
| Manufacturer's Grade | KCU10 |
| Coating | AlTiN |
| Insert Hand | Left Hand |
| Cutting Height (mm) | 5.56 |
| Cutting Height (Decimal Inch) | 0.2190 |
| Insert Seat Size | 2 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.19 |
| Corner Radius (Decimal Inch) | 0.0075 |
| Coating Process | PVD |
| Series | Top Notch |
| Overall Width (mm) | 3.84 |
| Overall Width (Decimal Inch) | 0.1510 |
| Included Angle | 55 |
