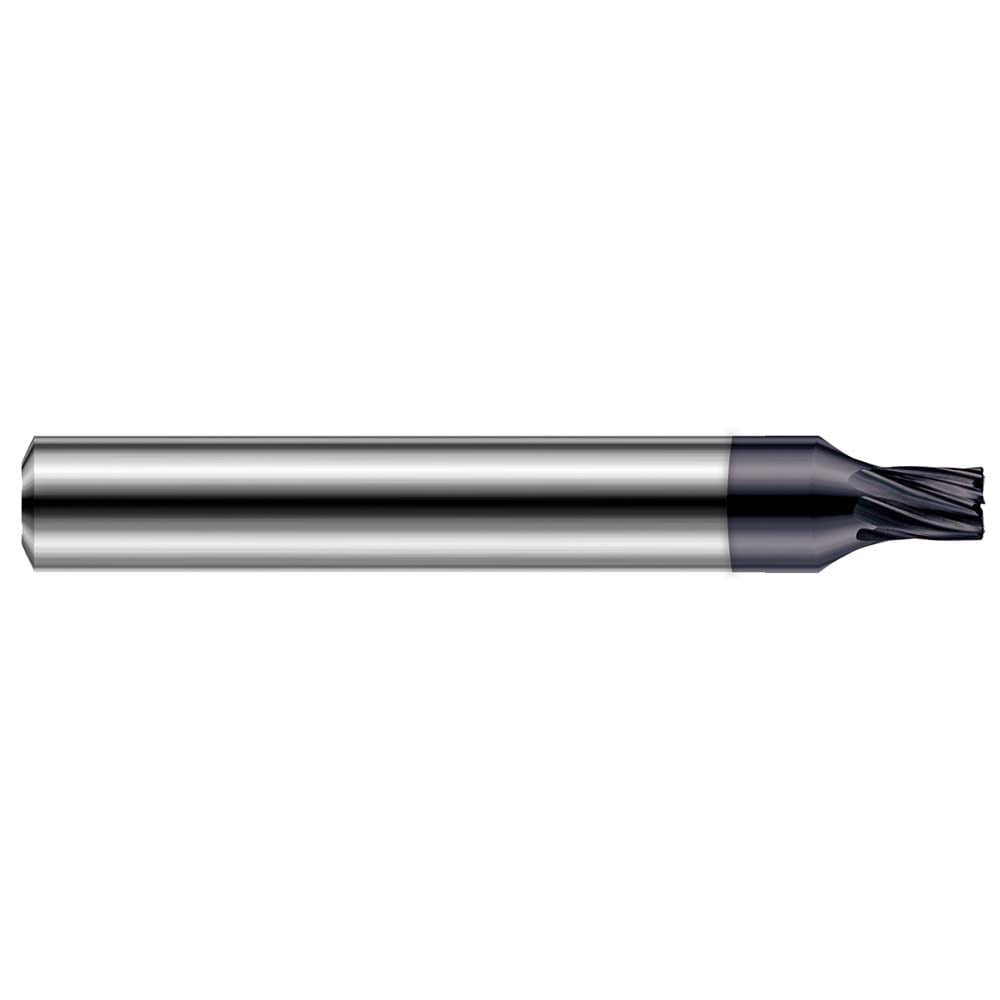

Corner Radius End Mill: 3/64" Dia, 0.0100" Radius, 7 Flute, Solid Carbide
Item #: 93057461
Brand: Harvey Tool
Model #: 850547-C6
Product Specifications
| Mill Diameter (Inch) | 3/64 |
| Mill Diameter (Decimal Inch) | 0.0470 |
| Mill Diameter (mm) | 1.20 |
| Number Of Flutes | 7 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | AlTiN Nano |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | No |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0100 |
| Variable Index | No |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Overall Length (Decimal Inch) | 2.5000 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1410 |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/4 |
| UNSPSC Code | 27112803 |
| Series | End Mills for Hardened Steels - Corner Radius - For Steels 45-68 Rc |
| Country of Origin | UNITED STATES |
